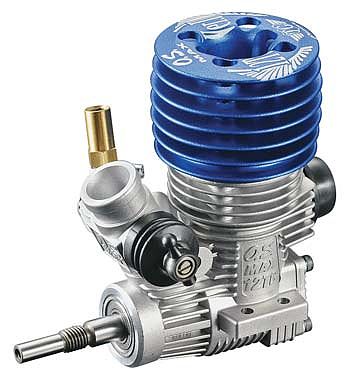

This is the O.S. Max .12TG Ver. II On-Road R/C Vehicle Engine with 12D2 Slide Valve Carburetor and without Pull Starter. ROAR Legal.:
Product Features
- ABL (Advanced Bi-metallic Liner) This process uses a double layer o plating material rather than one thick layer. This helps the meta bond to the cylinder and is more durable. Also, the plating proces is more consistent, resulting in a more precise fit between pisto and sleeve for better compression, longer life..:
- 12D2 slide valve carburetor with thermo insulator.:
- Two year warranty through Hobby Services beginning at date o purchase.:
Product Specifications
- Displacement: 0.128 cu in (2.10cc):
- Bore: 0.543 (13.8mm):
- Stroke: 0.551 (14.0mm):
- Practical RPM Range: 5000-30,000:
- Power Output: 0.7PS, 0.69HP @ 28,000rpm:
- Weight: 8.01oz (227g):
- Crankshaft Size: UNEF 1/4-28:
- Distance between mounting holes same side: .43 (11mm):
- Distance between mounting holes opposite side: 1.24 (31.4mm):
- Distance/top of cyl.head to bottom of mounting flange: 2.88 (73.3mm):
- Height/bottom of crankcase to top of cylinder head: 3.83 (97.5mm):
- Width between mounting flanges: 1.53 (39mm):
- Width of crankcase beneath mounting flanges: 1.00 (25.4mm):
- Exhaust outlet, outer diameter: 0.55 (14mm):
- Exhaust outlet, inner diameter: 0.39 (10mm):
- Carb inlet, outer diameter: 0.63 (16mm):
What's Included
- O.S. Max .12TG Ver. II engine, 12D2 Slide Valve Carb, #8 glow plug:
- Exhaust Sealing Ring and Instructions:
Required
- Car Blend Fuel: 20% nitro:
- Air filter, electric starter and exhaust system depending on vehicle
- Glow starter and track equipment:
|
Click a link to the left to view products here... |
Product Rankings Manufacturer Comments - Needle Settings: High Speed: 2.5 turns out from fully closed Mixture Control (low speed): flush with ball link body Throttle Stop Screw: .5mm - 1mm open from fully closed:
- Some points on Slide Valve and Rotary carburetors-.:
- Rotary carbs offer a larger response in the middle of the engine' power band. This is desirable for off-road applications wher throttle response must be varied..:
- Slide Valve Carbs provide greater response at the beginning and en of the power band. This works well for on-road and racing vehicle demanding fast take-offs and high speed..:
|
