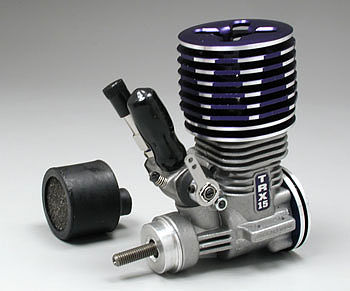

This is a Long Crankshaft Version of the Traxxas Pro TRX-15 Engine. It is for modelers who want higher performance than a .12 size engine in their 1/10 scale kits such as Nitro Hawk, Buggy and Street. This is a Non-Pull Start Version.:
Product Features
- ABC (Aluminum Brass Chrome) Construction.:
- Oversized Machined Aluminum Blue/Silver Anodized Cylinder Head.:
- Channelled Beam Connecting Rod for Improved Oil Flow.:
- Precision Ball Bearings.:
- Large-Bore, High-Flow Carburetor.:
- Double O-ring Seals on High and Low Needle Valves.:
- Industry-Standard Mounts and Crankshaft Lengths to Fit Mos Applications..:
Product Specifications
- According to Traxxas, this engine will produce 20% more power than the TRX-12, which is approximately 9-11% more power than the OS
- CZ-Z. These figures are tested on a dyno (loaded) which provides power curves on a computer. Traxxas was not able to provide any numbers on BHP, bore, stroke, etc. Keep in mind that these figures are often useless, as they will vary from engine to engine. And there are other variables to consider: the kit, terrain, %nitro in fuel, etc . . .
- Overall Length (front end of shaft to back of engine): 83mm (3.25):
- Height (top of cylinder head to bottom of backplate): 93mm (3-5/8):
- Width (cylinder head): 41mm (1-1/2):
- Mount holes (center to center): left to right: 31mm (1-1/4) front to back: 11mm (7/16)
- Overall width of mounting ears (where the holes are): 40mm (1-9/16):
What's Included
- One Assembled Engine Without Pull Starter:
- One Air Cleaner (black rubber with black foam element):
- One Full Instruction Book and Parts Exploded View:
- One Traxxas Decal Sheet:
- Installed Glow Plug (standard long--no idle bar):
Product Rankings Manufacturer Comments - For the Pro 15 with the Short Crankshaft, use TRAG4004..:
- For the Pro 15 w/Long Crankshaft & Pull Start, use TRAG4009..:
- If you have any other kit, I would call that manufacture or call Traxxas directly at 1-888-TRAXXAS..:
- Traxxas engines run much hotter than normal engines (O.S., ASP ThunderTigre, etc.). Therefore, Traxxas recommends their Top Fue (trap5010) and their glow plug (trag3230) to run the engine cooler
|
