Product Rank

Includes

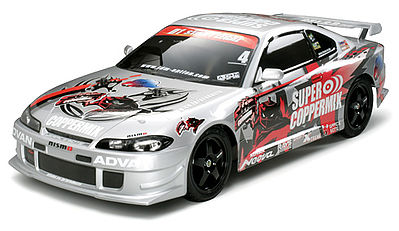

• NISMO Coppermix XB vehicle with friction type shocks, 540 motor,
• Electronic Speed Control, clear body, tires, foam bumper, 5-spoke wheels, 19 tooth pinion gear, 61 tooth spur gear, instructions and
• LED head and tail lights _

Features

• Chassis: Plastic tub TT-01 design .098" (2.5mm) thick.
• Drive: Four wheel shaft drive.
• Motor: 540 size motor with pre-attached leads.
• Body: Polycarbonate, with colorful logo stickers of Nismo an Super Coppermix logos.
• Shocks: Friction, plastic body.
• Lights: LEDs replicate head and tail lights.
• Gearboxes: Sealed.
• Differentials: Bevel gear.
• Transmission: Single speed.
• Tires: 2.6" (65mm) outer diameter, racing radial type.
• Wheels: Black, five-spoke wheels.
• Speed Control: TEU-101BK with standard connectors, TAMM3194.
• Bumpers: Urethane front bumper.
• Suspension: Independent double wishbone.
• Caster: Non-adjustable, caster/toe-in refers to the angle of th front suspension when viewed from the side of the car in relatio to the chassis.
• Camber: Non-adjustable, camber refers to the angle of the top of the tires from vertical when viewed from front or behind vehicle.
• Steering: Bell-crank type.
• Servo Saver: Included.

Requirements & Suggestions

• Radio: 2-channel with one standard servo
• Radio Batteries: 8 AA size
• Battery: 6 cell stick pack with standard connector
• Charger: AC/DC Timed or Peak for 6-cell battery

Comments

For Replacement Ball Bearings use Qty. Size Locatio Bearing Set Qty 12 5x11mm front & rear diff gears, hubs (use 6-DTXC1547 4 8X12mm front & rear diff gears (use 2-DTXC1597).
