Features

• 6 FX3 functions, .5A.
• Decoder features two 6.5mA function outputs, supports Digitrax FX3 functions and 14, 28 or 128-step speed control.
• Other features include
• QSI-style PCB replacement Plug N'Play decoder - allows replacement with downloadable SFX SoundBug(TM) modules
• Accepts Plug-in SFX SoundBug sound modules
• Regulated headlights; no resistors are required for installation of LEDs or lamps
• Torque compensation for smooth, silent operation.
• Momentum with acceleration and deceleration.
• User selectable normal direction of travel.
• Three-step speed tables set start, mid and max voltage for custom control.
• 28-step speed tables with 256 level resolution for precise control.
• SuperSonic(TM) motor drive for silent operation.
• FX3 Function outputs for prototypical lighting effects and on/off control
• Constant brightness lighting with directional or independent control
• Realistic effects such as ditch lights, Mars lights, strobes, and more.
• Dynamic and static qualifiers operate functions based on direction, F0 on or off, loco direction and F0, and whether loco is moving.
• Function remapping for custom setup.
• Master light switch turns off all lights & functions with one keystroke.
• Advanced consist function controls
• Transponder equipped. Compatible with digital surround sound systems.
• Decoder lock equipped
• Fits Kato locomotives.

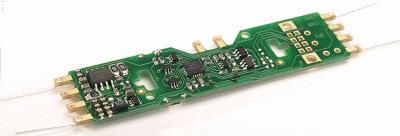

• This board replacement decoder measures 2.877 x .667 x .173" 73 x 16.9 x 4.4mm with .5" 127mm stiff wires on each end and has a current rating of 1.25A.
