E16-7W Reload Kit 29/40-120

This Package Contains One E-class E16-7W Model Rocket Reload Kit for Aerotech RMS 29/40-120 Motors. Federal Law Prohibits the Sale of this Product to Persons Under Age 18.

Aerotech E16-7W Reload Kit 29/40-120
 Aerotech # aro51607
$11.89
DISCONTINUED

Retail $14.99  SAVE 21% !
Aerotech Item # aro51607
Features :
  • Fits all kits designed for F and G motors.
  • The primary use is for single stage.
  • The "W" stands for White Lightning Propellant.

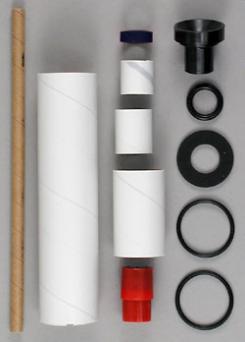

  • This reload kit includes (1 of each)
  • -Liner (1" O.D. tube).
  • -Propellant Grain (long slotted part).
  • -Delay Grain (short solid part).
  • -Grain Adaptor (7/8" O.D. tube).
  • -Delay Spacer (9/16" O.D. Washer or tube).
  • -Delay Insulator (5/8" O.D. tube).
  • -Outer Delay O-Ring (1/16" thick x 5/8" O.D.).
  • -Inner Delay O-Ring (1/16" thick x 1/2" O.D.).
  • -Forward Insulator (1" O.D. washer).
  • -Nozzle (black plastic part).
  • -Aft O-Ring (1/16" thick x 1" O.D.).
  • -Forward O-Ring (1/16" thick x 1" O.D.).
  • -Copperhead Igniter.
  • -Ejection Charge Container/Nozzle Cap (red).
  • RMS standard new delay O-ring instructions for RMS 24/40 and RMS 29/40-120 motors.
  • Detailed assembly and operation instructions included.
Out of Stock
Discontinued - No longer available for purchase
Website security verified by GoDaddy.

You Might Also Like

← Swipe To View More →

Features

  • Fits all kits designed for F and G motors.
  • The primary use is for single stage.
  • The "W" stands for White Lightning Propellant.
  • This reload kit includes (1 of each)
  • -Liner (1" O.D. tube).
  • -Propellant Grain (long slotted part).
  • -Delay Grain (short solid part).
  • -Grain Adaptor (7/8" O.D. tube).
  • -Delay Spacer (9/16" O.D. Washer or tube).
  • -Delay Insulator (5/8" O.D. tube).
  • -Outer Delay O-Ring (1/16" thick x 5/8" O.D.).
  • -Inner Delay O-Ring (1/16" thick x 1/2" O.D.).
  • -Forward Insulator (1" O.D. washer).
  • -Nozzle (black plastic part).
  • -Aft O-Ring (1/16" thick x 1" O.D.).
  • -Forward O-Ring (1/16" thick x 1" O.D.).
  • -Copperhead Igniter.
  • -Ejection Charge Container/Nozzle Cap (red).
  • RMS standard new delay O-ring instructions for RMS 24/40 and RMS 29/40-120 motors.
  • Detailed assembly and operation instructions included.

Specs

  • Propellant Weight: .67oz. (19gms.)
  • Loaded Motor Weight: 3.8oz. (107gms)
  • Average Thrust: 3.6lbs. (16N)
  • Aerotech Product Number: 51607

Includes

One Package of E16-7W Reloadable Motor System


Requirements & Suggestions

← Swipe To View More →

Reviews


Comments

  • Damaged or defective reloads should be returned to Aerotech.
  • Read and follow the safety codes of the National Association of Rocketry (NAR) and the Tripoli Rocketry Association and comply with
  • all federal, state and local laws in all activities with hobby
  • rockets.
